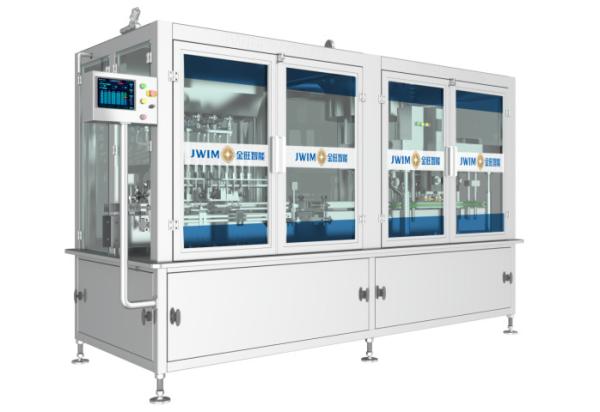

GX-16-6B Integrated Filling Capping Machine
1. Introduction
GX-12-6B Automatic Integrated Filling Capping Machine, filling part is driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, all the operations can be done in the touch screen. Capping part is making up with cap supply, cap scratch, pressing, clamping and conveyor.
The machine has compact structure, small occupation area, integrated filling and capping in one, SUS304 frame and toughened glass door cover which is more safe, environmental-friendly and easy for cleaning.
2. Technical Parameters
| 1 |
Capacity |
20ml: ≤4500 BPH
Capacity differs from product, drum and product characteristic
|
| 2 |
Applicable Bottle |
Diameter: Φ20-60mm Height:50-150m |
| 3 |
Applicable Cap |
Cap Diameter: Φ20-50mm Height:15-40m |
| 4 |
Filling Precision |
±1%-±1.5%
Capacity differs from product, drum and product characteristic
|
| 5 |
Product Feeding Height |
1980mm |
| 6 |
Product Feeding Diameter |
Φ26mm |
| 7 |
Filling Nozzle External Diameter |
Φ9mm |
| 8 |
Min Opening Diameter |
≥Φ13mm |
| 9 |
Air Pressure |
0.6-0.8MPa |
| 10 |
Power Source |
～380V 50Hz/4KW |
| 11 |
External Dimension |
3420×1180×2078mm(L×W×H) |
| 12 |
Weight |
About 1100kg |
3. Advanced Features
3.1. It is widely used for the automatic filling and screw capping from 20-100ml in agrochemical, chemical, fertilizer, personal care products, oil and other related industries.
3.2. The control system uses France Schneider, the integrated control system is more stable, safe, green and low energy consumption.
3.3. Jinwang uses Schneider PLC control, servo motor drives the synchronous belt+stable operated double screw rod lifting structure to make sure the high precision of piston movement and filling.
3.4. 100ml pistons make sure the filling precision of small volume.
3.5. The screw cap part has good versatility, convenient adjustment and economical application without extra format. The latest capping wheel material will not make any damage to the caps. The molding clamping belts are durable.
3.6. The cap sorter installs with auto inspection device, the cap elevator will automatically start if there is not enough caps (can work with the cap elevator). This will make sure the supply of caps.
